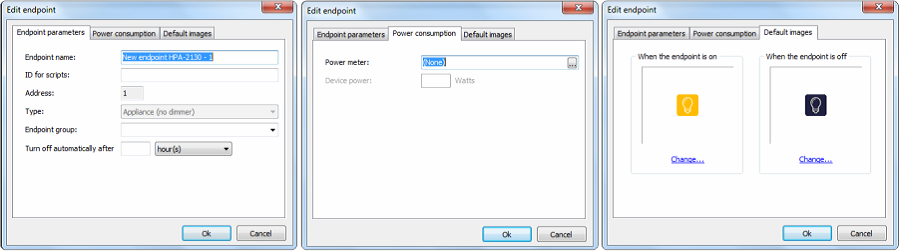

Node parameters:

·     Node Name: Enter a descriptive name that allows you to identify the Endpoint in your installation.

·     ID Scripts: this optional field will identify the Script Endpoints. You can enter a short name, ensuring that no two plans with the same ID.

·     Address: the system identifies the channel that owns the endpoint. In a device that controls various channels, the system will display the channel number assigned to the endpoint you are editing.

·     Type: in this case the system identifies the Endpoint like a on / off device control.

·     Endpoints Group: This application will allow you to assign the Endpoint to a group previously defined. Then you can configure actions for the group.

·     Consumption Meter: Here you can associate the Endpoint to a consumption meter (real or virtual) pre-configured at installation.

·     Power Device: You must configure the power of appliance to control.

·     Auto Power Off: This feature is optional. You can set a time for the system to automatically shut off at the Endpoint.
