The HPA-2130 is an on / off controller for two channels. So in your advanced settings will have
the option to configure two endpoints (one for each channel)

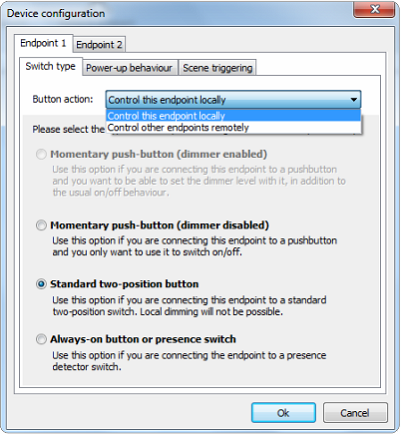

Specify type of wall key to use.
Key Type:
Action, specify if the wall key connected will be used for controlling Endpoint locally or remotely
control another network Endpoint.
· If you control the Endpoint locally, it must specify which type of key used.
· If you control other endpoints remotely, you must also configure the key type, the action to
perform and ultimately must assign the Endpoint to control network.
Control Remote Endpoints

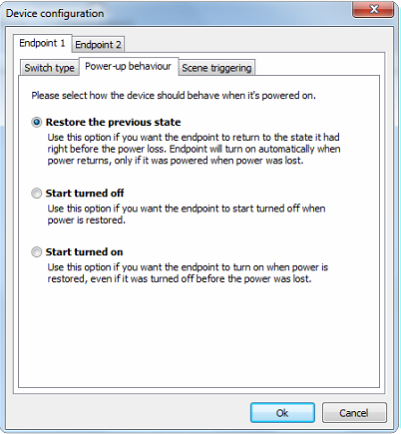

Reaction to turn on: by default the system chooses the option back to its previous state, but you
can specify a different state.

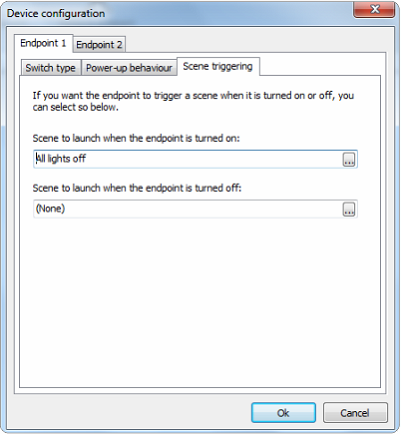

Scenes: here you can associate Scenes with the actions of the Endpoint. Scenes must be
previously defined.
Scene Selection
