Virtual devices are elements that allow us to simulate .......
Its use is recommended for ......

To create a new virtual appliance, must go to the Devices screen, select the New button device ... in the dropdown menu select New virtual device ... Then you can edit the device normally.

The virtual devices do not have Advanced Settings. Are following listed ZigBee Devices at Devices screen.

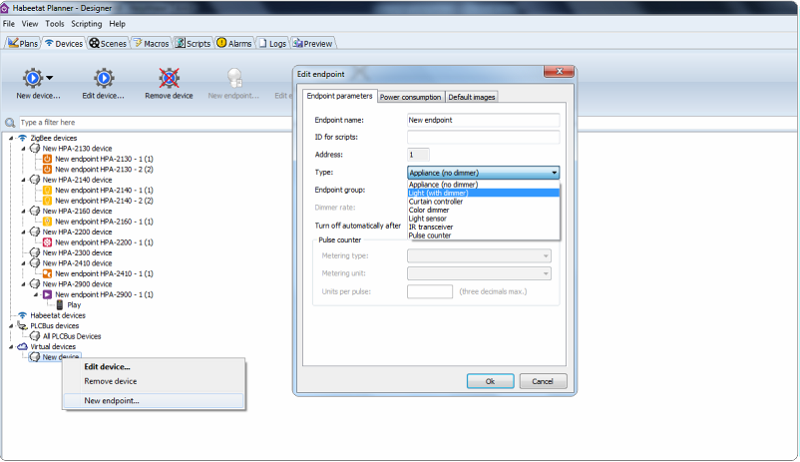

Virtual devices control Virtual Endpoints : to create them should be positioned on the virtual device and press the right mouse button, select New Endpoint ...

Table for editing Virtual Endpoints

Node parameters:

·     Node Name: Enter a descriptive name that allows you to identify the Endpoint in your installation.

·     ID Scripts: this optional field will identify the Script Endpoints. You can enter a short name, ensuring that no two plans with the same ID.

·     Address: the system identifies the channel that owns the endpoint. In a device that controls various channels, the system will display the channel number assigned to the endpoint you are editing.

·     Type: in this case the system identifies the Endpoint like a Light with dimmer driver or Dimmer with color controller (depending on the case).

·     Endpoints Group: This application will allow you to assign the Endpoint to a group previously defined. Then you can configure actions for the group.

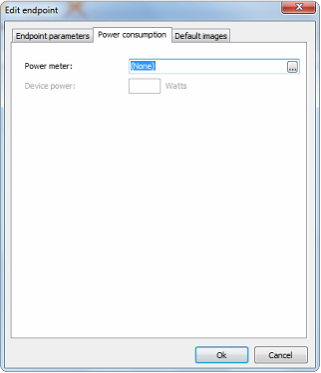

·     Consumption Meter: Here you can associate the Endpoint to a consumption meter (real or virtual) pre-configured at installation.

·     Power Device: You must configure the power of appliance to control.

·     Dimmer speed: is the time it takes Endpoint to dim the light.

·     Pulse Controller: This group of variables are enabled when the virtual Endpoint is a Pulse counter Type . Here you can select what you want to measure and in what units.

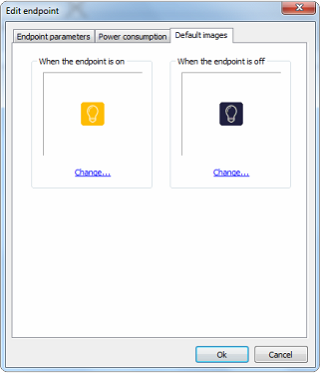

Images by default: choose two images to use to represent the state of the Endpoint.

Assign image for Endpoint.
