A scene is an action that triggers and combines a set of "states" of different devices.
To manage the Scenes, is accessed from the top menu Scenes tab.

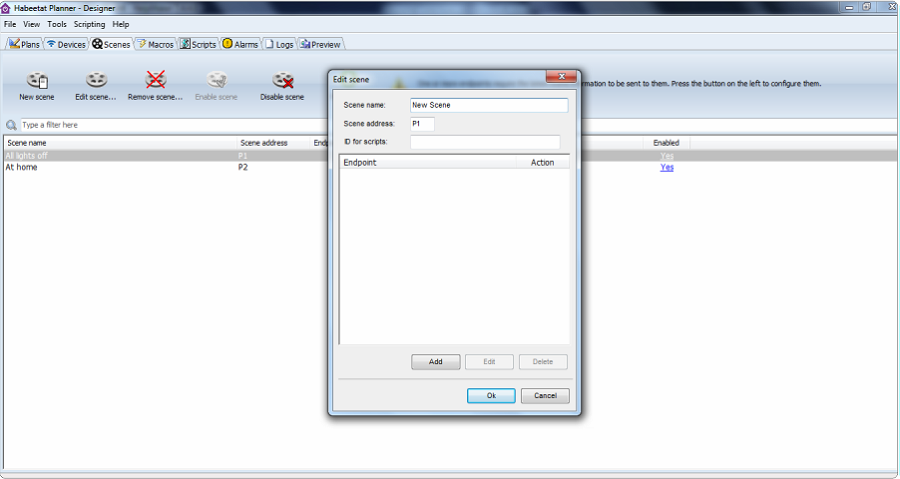

Scenes Configuration Window

Creation of a Scene: In the top menu of the tab Scenes, select New scene. This opens the Edit Scene dialog box.

•   Name: Enter a descriptive name. This name will only be used by the Designer.
•   Address: you will be prompted to enter an address between A2 and P16
•   Endpoints: You must add to the list indicating the action you want performed at the time of the scene shooting.
•   Use the Add, Edit and Delete button to configure the endpoints of the list.

Important: Once you have created a scene, you must access from the devices screen to each of the endpoints involved, press the right mouse button and select Reschedule scenes in this Endpoint. This will complete the process of creating the scene.

The list will allow you to see the scenes you have defined, showing its general properties, address, devices involved, and so on. You can enable or disable a Scene by "clicking" on the Enable column.

Shoot Scenes: Habeetat Planner software allows you to shoot scenes in different ways:

· Create a button, text or image tag to shoot scenes with a "" click "" or "double click". In this case, the scene is executed when the user "clicks" the button / label / image in the browser.

· Create a Macro to select the scene, and then create an action that triggers the macro. A typical example is an action triggered by the setting sun to throw a scene that turns outdoor lighting.
