Plans Design

Entering the Top Menu plan tab, you can display the side dialog box that lists predesigned plans that Designer includes. These plans or screens can be modified or deleted; you can also design new plans with images and text you want.

Delete an existing plan: select the plan you want to remove positioning in the side list of the dialog box, press the right mouse button and select Delete.

Note: if a plan was removed in error, must be recreated. Any change or modification that is done, it is automatically dumped into the system.

Duplicate a plan: select the plan you want to duplicate positioning in the side list of the dialog box, press the right mouse button and select Duplicate. The new plan is created at the end of the existing list.

Note: plans on the side list are listed alphabetically. The plan marked with a black point will be used as "Home" or flat / screen home to start the application.

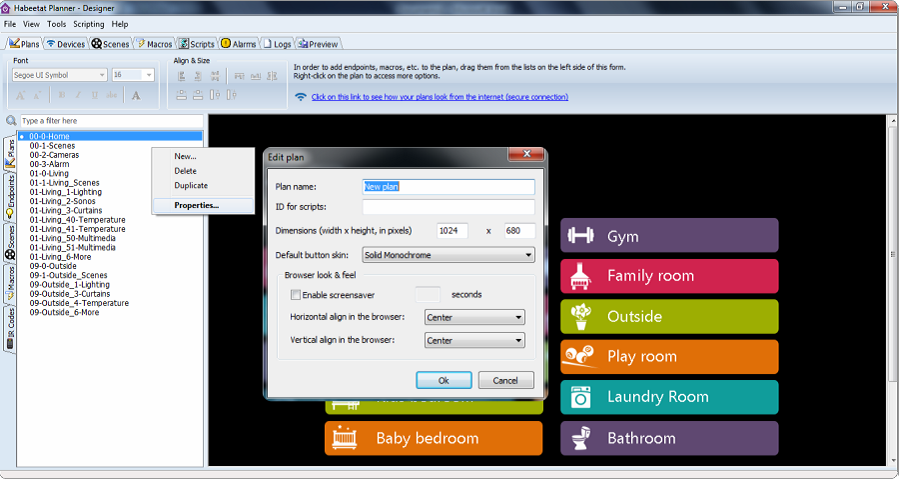

Creating a plan: positioned on the side dialog box, and press the right mouse button, select New ..., it will open a popup window that allows you to configure the new plan.
The plan configuration options are accessible to existing plans in Properties.

• Name: Enter a descriptive name. This name will be displayed in the application, and also in the macros that link one plan to another.
• Scripts ID: this optional field will identify the plan or screen on scripts. You can enter a short name, ensuring that no two plans with the same ID.
• Dimensions (in pixels): Specifies the width and height of the plan. By default the size of the new plans are 1024 x 680 pixel resolution optimized for the display of the screens in an iPad.

• Initial Style button: Predefine the button style to use for this plan.
• Enable Screen Saver: Specifies the timeout for the screensaver. If you leave this field blank, the plan will have no screen saver.
• Select OK to save the plan, or Cancel to delete the changes.

Navigation and links between plans: if your design has several plans or screens, you may want to include link buttons that allow you to navigate between them. For this, you must add a new image or button on the plan, which is configured to run the link between plans.
