The HPA-2300 is a wall controller for scenes. You can shoot from the wall up to 6 key scenes per
controller.

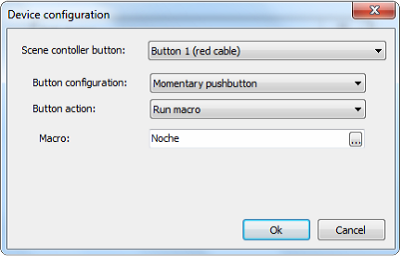

You must enter Edit Device ... / Advanced Settings, where you can access a dialog box in
which you must specify an action for each key:
· Key driver: a drop-down menu allows you to configure each of the keys previously
connected to the output channels of the device. Each channel will trigger a different function
and has a cable of a different color for easy identification.
· Key setting: a drop-down menu lets you select the type of keys mounted on wall, which
connects the device.
· Action: You can select the type of action to execute when you press the key.
· Macro: can select a previously configured Macro to be powered from the wall button.
